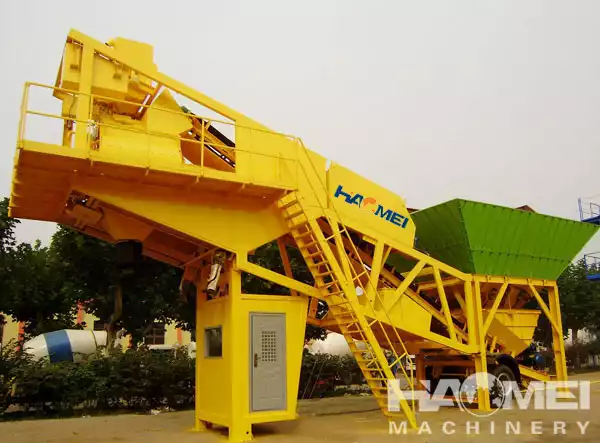

YHZS35 Mobile Concrete Batch Plant
Higher-capacity mobile concrete batching plant for road construction, bridge projects, temporary concrete supply and remote infrastructure.
Request a Quote
Mobile Production with Higher Output
The YHZS35 mobile concrete batch plant provides higher mobile production capacity for contractors requiring flexibility and efficiency.
The integrated mobile structure helps reduce installation time and supports convenient relocation between project sites.
Specification of mobile Batching Plant
| Item | Specification | |
|---|---|---|
Model |
YHZS35 |
|
Mixer |
JS750 |
|
Productivity |
35m3/h |
|
Aggregate hopper |
4*5m3 |
|
Grain size |
≤80mm |
|
Discharge height |
2.8m |
|
Total weight |
20T |
|
Total power |
55kw |
|
Weighing accuracy |
Aggregate |
2000kg±2% |
Powder |
300kg±1% |
|
Water |
250kg±1% |
|
Additive |
20kg±1% |
|
Dimension |
14.1mx2.2mx3.9m(Moving)13.2mx3.3mx6.7m(Working) |
|
Speed |
15km/h |
|
Voltage specification |
380v/50Hz (as request) |
|
Higher Mobile Capacity
Suitable for contractors with larger temporary concrete demand.
Fast Relocation
Trailer-mounted structure supports project mobility.
Reliable Mixing
Twin-shaft mixer helps produce uniform concrete.
Applications
- Road and bridge projects
- Airport and port construction
- Temporary concrete supply
- Remote project camps
- Municipal infrastructure work
Customer Case
A contractor selected the YHZS35 mobile concrete batch plant for a road and bridge project, reducing delays caused by long-distance concrete transportation.
FAQ
What is the advantage of YHZS35 over YHZS25?
YHZS35 provides higher production capacity while maintaining mobility.
Can the plant work for commercial concrete supply?
It can support temporary or project-based concrete supply depending on operating conditions.
What information is needed for quotation?
Required capacity, project location, concrete application, power conditions and site layout are helpful.
Looking for a 35m³/h Mobile Concrete Plant?
Send us your project information for a suitable proposal.
Product Comparison
| Model | Type | Capacity | Best For |
|---|---|---|---|
| HZS25 | Stationary | 25 m³/h | Small construction and precast |
| HZS35 | Stationary | 35 m³/h | Medium projects and local supply |
| HZS50 | Stationary | 50 m³/h | Ready-mix and infrastructure |
| YHZS25 | Mobile | 25 m³/h | Temporary and remote sites |
| YHZS35 | Mobile | 35 m³/h | Road and bridge projects |
| Skip Hoist Plant | Stationary | 25–50 m³/h | Limited-space job sites |
